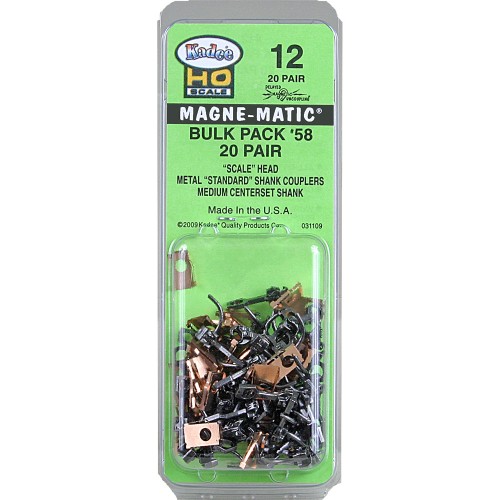

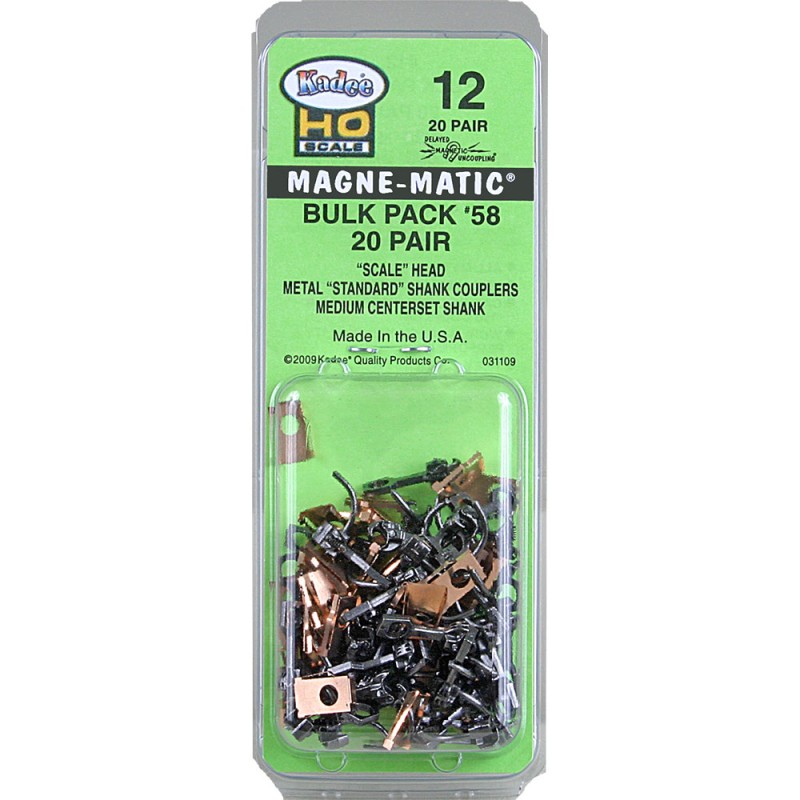

#12 HO Scale Bulk Pack - 20 pair #58 Scale Metal Couplers - Medium (9/32") Centerset Shank

HO-Scale Package Includes: (20) Pair #58 "Scale" Metal Couplers - Medium Centerset Shank (20) Pair #634 Centering Spring NO.5® Style Extra #625 Knuckle Springs NO.5® Metal Coupler Features: Material - Metal Shank Length - Medium (9/32") (center hole to back of coupler head) Coupler Offset - Centerset Knuckle Spring - #625 Centering System - Standard Shank Centering Spring - #634 Centering Spring NO.5® Style Head - "Scale" Head Works In Place of - NO.5®, #28, #118, #119, #148, #158, most medium centerset "clone" couplers Works With - #213, #232, #234, #242, most manufacturer cast-on draft gearboxes #232 Plastic Draft Gearboxes & Lids (Not Included) Features: Material - Insulated Plastic Dimensions - 29/64"L x 19/64"W x 7/64"H Works With - NO.5®, #58, 20-Series and all Whisker® Couplers Mounting Specifications: Mounting Height - 29/64" Centerline - 25/64" Trip Pin Height - 1/32" Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) Side Holes - 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)
